In this useful guide, Compression Adapters are covered as parts that adapt tubing and smaller pipe runs for leak-resistant plumbing work. It is written for homeowners, professional plumbers, and anyone searching for suitable parts at Installation Parts Supply.

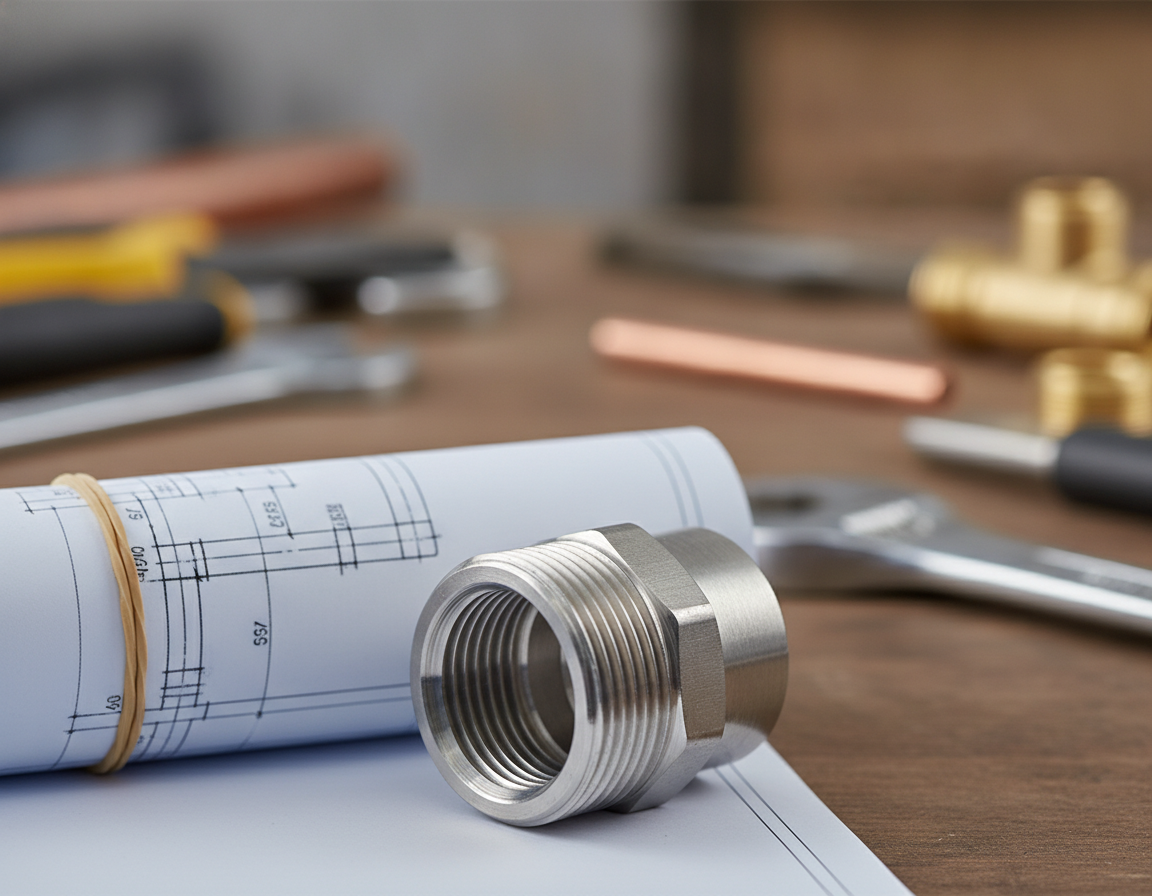

1/2 Male To 3/8 Female Adapter
A compression adapter forms its seal when the ferrule is pressed against the tubing and fitting body, locking in a secure connection. They are frequently used in residential, business, and plant plumbing systems.
This guide covers various types, sizes, materials, and fitting techniques. It also explains troubleshooting and common job situations. It emphasizes the importance of converting between 3/8 and 1/2 in. sizes and matching thread types such as NPT versus compression. For strong performance, the guide features copper choices.
It is important to follow manufacturer torque and turn specifications. Use tubing inserts for soft tubing like PEX when recommended. Avoid mixing ferrules or fitting bodies from different brands to avoid leaks and galling.
Key Takeaways
- A compression adapter seals when its ferrule is pressed onto the tubing.
- Installation Parts Supply provides common sizes and materials for most jobs.
- Select materials—brass, copper, or stainless—based on pressure and environment.
- When adapting 3/8 and 1/2 in. fittings, precisely match both size and thread type.
- Follow turn-count guidance and use inserts when working with flexible tubing.
Compression Adapters And Compression Fittings Explained
A compression adapter connects tubing by physically pressing a ferrule around the tube’s outside diameter. These fittings are different from threaded connectors and push-fit types in how they create a seal. Its seal is created by controlled metal deformation instead of thread sealant alone or internal retention clips.
Below are brief explanations of each part and how they work together.
Compression Adapter Basics And Key Differences
A compression adapter is a type of compression fitting used to join pipes or tubes without soldering. It works by driving a compression ferrule into a tapered compression fitting body as the compression nut is tightened. That approach is different from threaded joints, which rely on matched threads and thread sealant. It is also different from push-fit fittings, which typically use rubber-like seals and retention clips for fast installation.
Key Parts: Nut, Ferrule Olive, And Fitting Body
The three primary parts are the compression nut, the compression ferrule, and the compression fitting body. The nut creates axial force. The ferrule, also called an olive, slightly deforms into the tubing surface. The fitting body contains a tapered bore that positions the ferrule.
Some designs include a rear ferrule to reduce stress on the seal and allow easier disassembly.
How Compression Fittings Make A Reliable Seal
When the compression nut is turned down, it forces the ferrule into the taper of the fitting body. This radial compression locks the ferrule against the tubing and produces a line-contact seal. Proper seating of the ferrule helps prevent leaks at normal system pressures and temperatures.
Compression fittings are commonly compatible with copper, brass, stainless steel, and many rigid plastic tubes. Installers should observe manufacturer torque or turn guidance and confirm tubing compatibility before assembly.
| Part | Job | Primary Advantage |
|---|---|---|
| Nut | Applies force to push the ferrule | More controlled assembly and service |
| Compression ferrule | Forms the tube-gripping seal | Strong metal-to-tube sealing under pressure |
| Adapter body | Taper guides and seats the ferrule | Consistent alignment and a stable sealing surface |
| Optional rear ferrule | Separates tightening force from final seal action | Better reassembly and reduced tube damage |
Common Compression Adapter Sizes And Type Conversions
Switching between 1/2-inch and 3/8-inch tubing is a common task. It is essential to select the right reducer or adapter. This ensures a proper fit based on tubing OD, thread type, and gender. Choosing the correct part avoids leaks, extra fittings, and unnecessary labor.
1/2 to 3/8 adapter options
For supply-line jobs, parts such as the 1 2 To 3 8 Reducer and Half Inch To Three Eighths Adaptor are regularly used. They convert a 1/2-inch feed to a 3/8-inch inlet. These parts are offered as single-piece reducers and two-piece compression adapters. The design maintains a continuous tube seal. Before buying, verify whether the listed size refers to tubing OD or nominal pipe size.
Adapters and reducers with differing genders
The gender of the fittings is critical for proper mating. When the mating component has a male thread, a 1/2 Female To 3/8 Male Adapter may be the correct choice. For the opposite gender, a 3/8 Female To 1/2 Male Adapter is used. Installers will also find 1/2 Male To 3/8 Female Adapter and 1/2 Male To 3/8 Male Adapter variations for mixed systems.
Compression-to-compression and compression-to-NPT fitting choices
Compression-to-compression parts, such as 1/2 Compression To 3/8 Compression adapters, maintain a continuous compression seal. When connecting to threaded pipe systems, choose a 1/2 Compression To 3/8 NPT or a similar conversion fitting. For NPT connections, use the correct thread sealant or PTFE tape so the joint remains pressure-tight.
- Review descriptions such as 1 2 X 3 8 Compression Adapter or 3/8 X 1/2 Adapter to confirm OD versus nominal size.
- Confirm thread pitch and gender before cutting or buying replacement parts.
- Use trusted suppliers such as Mueller, Parker, or Watts to lower the risk of incompatible parts.
Material Compatibility For Reliable Compression Connections
The choice of materials strongly affects the longevity of a joint. The fitting material should be matched according to tubing material, working pressure, and fluid type. This supports a leak-free, corrosion-resistant, and galling-free connection. For corrosive, high-purity, or demanding systems, a 3 8 Male To 1 2 Female Stainless Steel fitting is often a reliable choice.
Brass, copper, and stainless steel are the primary materials for most applications. Brass adapters generally work well in potable-water and general plumbing systems. Copper fittings are ideal for copper tubing and soldered systems. Stainless steel, on the other hand, offers corrosion resistance and durability in high-pressure or chemical environments.
Compression joints work most reliably with hard tubing like copper, stainless steel, nylon, and PEEK. Flexible tubing like PEX may also be used when a correctly sized tubing insert is installed. These inserts reduce the risk of the tube from collapsing and ensure the ferrule bites properly.
PTFE tubing is chemically resistant and flexible but prone to PTFE cold flow under clamped loads. To reduce that risk, choose fittings with secondary seals, internal O-rings, or back-up support features. When PTFE is used in compression joints, review the connection periodically for deformation or seepage.
Ferrule selection is important to a reliable compression seal. Brass or stainless steel ferrules perform consistently across broad temperature ranges. One-piece ferrules may be effective for softer tubing applications. Two-piece ferrule systems, on the other hand, provide extra control, reducing galling by decoupling the front and rear ferrule actions.
Asymmetrical ferrules, with a cone-shaped profile, ensure consistent seals in precision systems. They lock orientation. Symmetrical ferrules are simpler to assemble but may shift on hard plastics. Select ferrule geometry according to tubing hardness, pressure, temperature, and service requirements.
Material selection should account for pressure, temperature, and the media flowing through the system. For high-pressure, high-purity, or aggressive fluid service, choose stainless components with compatible ferrules. In routine domestic plumbing, brass compression adapters and copper compression fittings often combine affordability, availability, and performance.
Compression Adapter Installation Best Practices And Common Mistakes
Effective installation begins with clean, square tubing and the correct parts. Adhering to best practices reduces leaks and rework. A pre-assembly checklist can save time and materials.
Preparing Pipe Ends: Cutting, Deburring, And Cleaning
Ensure tubing cuts are square with a quality cutter. Crooked or uneven cuts can trigger leaks. Deburring tools clear away sharp edges and metal slivers.
Clean the ends with a lint-free cloth to clear oil, dirt, and metal dust. For soft tubing like PEX, install a rigid insert sized to the tubing ID. This helps the ferrule to seat properly. These steps—cutting, deburring, and cleaning—are critical for a reliable seal.
Proper Tightening: Distance Turns Versus Torque And Avoiding Over-Tightening
After reaching finger-tight, follow the manufacturer’s recommended number of turns. Turn-count tightening often aligns with ferrule geometry more reliably than torque alone. Thread pitch is directly tied to how much the ferrule compresses.
Avoid over-tightening to prevent ferrule flattening and broad surface contact, which can lead to leaks. With stainless fittings, use controlled torque to reduce galling. Use isopropyl alcohol as a temporary aid only if permitted by the maker.
When To Reassemble Or Replace Compression Ferrules
Most compression fittings can be opened a limited number of times. Ferrules often swage onto tubing after the first installation and may not reseal correctly if reused. Whenever a fitting is removed, check the ferrule for deformation, scoring, or uneven seating.
Replace ferrules showing signs of work-hardening, cracking, or poor seating. If the fitting has been repeatedly assembled and removed, replace the ferrule and consider replacing the fitting body to restore a leak-tight joint.
Common mistakes include mixing components from different manufacturers, neglecting to use inserts on soft tubing, mismatching compression and NPT threads, and ignoring cutting, deburring, and cleaning. Addressing these issues lowers call-backs and enhances long-term performance.
Identifying The Right Adapter: Keyword-Focused Selection Guide
Finding the correct adapter starts on using precise search phrases and carefully reading part descriptions. Utilize specific phrases to identify the exact match, preventing the need for returns. Common search terms include 3/8Th To 1/2 Adapter and 1 2 X 3 8 Compression Adapter for swift results.
Key details to look for in descriptions are gender, diameter, and thread type. Listings like 1/2 Female To 3/8 Male Adapter or 1 2 To 3 8 Compression Adapter help show which end accepts tubing or pipe. Always check whether the diameter refers to tubing OD or nominal pipe size.
Search variants are important because suppliers often use different naming systems. Try 3/8 X 1/2 Adapter, 3 8 To 1 2 Compression Adapter, or 3/8Th To 1/2 Adapter to find compatible parts across various catalogs. Suppliers such as Installation Parts Supply and Grainger may catalog the same fitting under several names.
The adapter’s orientation must align with the components it connects to. A male-to-female fitting such as 1 2 Male To 3 8 Female Adapter may be the right choice for connecting a rigid pipe run to a hose or supply line. Female-to-female adapters, on the other hand, join two male-threaded components.
Use extra care with hybrid fittings that combine different thread types. A 1/2 Compression To 3/8 NPT or a 1/2 Female Compression To 1/2 Male NPT combines compression and pipe thread on opposite ends. Always use thread sealant as directed by the manufacturer.
Material selection is critical for corrosion resistance and compatibility. Brass and stainless steel are preferred options. Check compatibility with copper, PEX, or PTFE tubing, and avoid galvanic corrosion when different metals are mixed.
When uncertain, confirm part numbers and review product photos closely. Incorporating keywords like 3/8Th To 1/2 Adapter, 1 2 X 3 8 Compression Adapter, 1/2 Female To 3/8 Male Adapter, 1 2 To 3 8 Compression Adapter, 3 8 To 1 2 Compression Adapter, and 3/8 X 1/2 Adapter in searches can expedite the process of finding the correct match.
Troubleshooting Compression Adapter Leaks And Performance Problems
Compression-connection leaks and pressure loss should be handled with a systematic process. Start with a visual inspection, then use simple checks to locate the problem. Always prioritize safety when working with live systems.
Diagnose Common Causes
First, inspect the ferrule for uneven marks or gaps. Look for nuts that are roughly engaged. Ensure the tubing is cut square and fully inserted. Make sure the adapter type suits the system so thread mismatches are avoided.
Step-By-Step Leak Diagnostic Checks
- Look closely to confirm the ferrule is seated and the nut is properly engaged.
- Turn the nut slightly and feel for smooth engagement; roughness can point to thread damage.
- Measure the tubing diameter and inspect for roughness, flattening, or ovality that may stop a proper seal.
- Before returning the system to service, pressure-test the connection at low pressure.
Practical Fixes
When a joint seems loose, tighten it again to the recommended specification. Do not over-tighten, because excess force can flatten the ferrule.
If ferrules are swaged, scored, cracked, or distorted, replace them and, when needed, replace the nut and fitting body as well. Avoid mixing ferrules and fitting bodies from different manufacturers because mismatched taper, length, or geometry can weaken the seal.
For soft tubing, fit an internal tubing insert sized to the pipe to stabilize the wall and improve sealing. In corrosive environments, switch to stainless steel fittings to extend service life.
Addressing PTFE Creep And Cold-Flow
PTFE cold flow prevention requires specific strategies. Use fittings with internal O-rings, redundant seals, or mechanically backed ferrule designs that resist creep.
Schedule periodic inspections because cold-flow can develop over time even after a correct installation. If PTFE shows deformation, replace the tubing and consider switching to a backup sealing method.
| Issue | Fast Check | Best Action |
|---|---|---|
| Leak at compression nut | Loose nut; visible gap at ferrule | Retighten to spec; if leak persists, replace ferrule |
| Pressure-related seepage | Oval tubing or poor ferrule seating | Re-cut tubing, support tube wall, and fit a new ferrule |
| Long-term slow leak | Inspect for tubing creep, collapse, or cold-flow | Add secondary sealing or change to reinforced tubing |
| Damaged or crossed threads | Nut feels rough while tightening | Replace nut or fitting body; retighten to spec on new parts |
| Corrosion or material failure | Inspect for rust, pitting, or discoloration | Change to stainless fittings and compatible ferrules |
Application Considerations And Use Cases
Compression adapters are essential for various tasks around the home. They commonly adapt supply tubing to faucet, toilet, and fixture inlets. For example, a sink supply line adapter may be needed when faucet inlets and sink supply posts use different sizes.
Home installations often involve sink and faucet supply lines, toilet connections, and appliance hookups. When replacing a tank or adding a valve, a water heater compression adapter can be useful. Choose parts rated for household water pressure and make sure the ferrule material matches the tubing.
In commercial and industrial settings, the requirements are more stringent. High-pressure compression fittings may be used in industrial piping, bottled gas systems, and HVAC equipment. For these applications, stainless ferrules and two-piece ferrule designs are recommended to withstand creep, corrosion, and vibration.
For instrumentation and high-purity systems, fittings must minimize contamination and out-gassing. Choose materials that are compatible with autoclave cycles and clean-room environments. For lab or medical equipment, confirm pressure ratings, documentation, and traceability before choosing components.
Combining parts from different manufacturers can lead to failures. Differences in ferrule taper, thread pitch, or ferrule length can block proper sealing. It is best to purchase fittings and ferrules from the same vendor or confirm compatibility through Installation Parts Supply or the manufacturer’s data.
When buying parts, check product pages for exact OD, thread pitch, material, and pressure rating. This step helps avoid surprises and reduces the need for field rework. Proper selection is key to preventing leaks and extending the service life of both residential and commercial installations.
Compression Adapter Summary
Compression adapters are important for joining and converting tubing, provided you select the right one and install it properly. Understanding the basic components—nut, ferrule, and body—is key. This knowledge helps in matching sizes, genders, and thread types, such as a 3/8 to 1/2 converter or a 1/2 female to 3/8 male adapter.
The material of the adapter is also critical. Brass and stainless steel are often specified for high-pressure, corrosive, or harsh chemical environments. Copper, on the other hand, is appropriate for many residential applications.
Adhere to the best installation practices. Ensure square cuts and deburr the tubing. Use inserts for soft PEX or nylon tubing. Tighten according to the recommended turn count and avoid crushing the ferrule.
When troubleshooting, check ferrule seating and thread condition. After disassembly, replace ferrules that are deformed. For PTFE applications, consider redundant seals, backup sealing methods, or alternative materials to control cold-flow.
When purchasing parts, rely on trusted suppliers and detailed specifications. Recommendations from Installation Parts Supply can help confirm compatibility. They provide a broad selection of adapters, reducers, and conversion fittings. Choosing the right parts and following proper installation techniques will reduce leaks and extend system lifespan.
