Is it possible for a solitary manufacturing technique to deliver complex shapes, metal-equivalent tolerances, and compounds that resist heat all at once? Step inside this short guide regarding a scalable technology enabling the production of highly precise, complicated ceramic parts. In this method entails blending very fine powder along with a binder to make feedstock. Next, that feedstock is injected, cleansed of binder, and sintered to achieve maximum density.
Learn more about bop inserts Houston
Major benefits involve freedom of design, reproducibility, exacting tolerances, and a texture matching metal techniques. This route excels particularly when tape casting or CNC struggle with small, detailed parts.
Expect dimensional change from contraction during sintering; early design-for-process thinking cuts rework and cost.|Be prepared for dimensional shifts due to shrinkage during sintering; strategic design-for-process thinking minimize cost and errors. This path favors mid-to-high volume production where the investment in tooling and cycles makes financial sense.
Applications cover aerospace, automotive, healthcare equipment, electronics, and machinery parts that require abrasion, heat, or corrosion resilience.|Sectors include automotive, aerospace, healthcare devices, tech, and industrial parts requiring resilience to heat, wear, or corrosion. Here, we trace the full path from material choice to QA, while highlighting metrology and predictive tools for secure results.
What Is Ceramic Injection Molding And Why It Matters Today
The injection molding process for fine-powder parts employs a thermoplastic or wax matrix mixed with powder to create a moldable feedstock.|Employing a wax or thermoplastic binder mixed with powder, the injection molding process for powdered parts creates a flowable feedstock. That material fills complex cavities to create green parts with geometry that are hard to achieve by casting, dry pressing, or isostatic pressing.
How It Differs From Traditional Methods
Unlike slurry or pressing techniques, this approach supports inner passages, overhangs, and slender sections in small-to-medium components.|Contrary to powder compaction or slurry methods, this path enables thin walls, undercuts, and internal channels within small-to-medium components. Throughput is higher and variability is reduced than hand-operated processes.|Throughput is faster, and deviation is lower compared to manual methods.
Its Place In Contemporary Workflows
Standard workflow: design for shrinkage → tooling → molding → binder removal → sintering → post-processing.|A typical sequence: design for shrinkage → tooling → molding → debinding → sintering → finishing. Cycle times frequently range from a few seconds to a few minutes per shot.|Cycle times generally run from seconds to minutes. The ideal volume is mid-to-high production where tooling cost pays off.
“Design validation through DOE trials and pilot runs reduces uncertainty prior to full production.”
| Method |
Geometry |
Speed |
Labor |
| CIM/MIM route |
High (undercuts, passages) |
High |
Minimal (automatable) |
| Casting |
Moderate |
Slow |
High |
| Isostatic/dry pressing |
Basic to medium |
Medium |
Medium |
Downstream, polishing or laser machining can refine dimensions after firing.|After sintering, laser features or lapping can tighten tolerances. This route meshes well with PPAP and SPC systems, improving process control and traceability. The distinct advantages today include productivity, reduced scrap, and the capability to unlock designs that were otherwise too costly.
The Core Principles Of Ceramic Injection Molding
This section breaks down the sequential process that converts fine powder and binder into a dimensionally stable part prepared for sintering.|Here, we outline the step-by-step route converting fine powder and binder into a dimensionally stable part ready for sintering.
From Powder And Binder To A Finished Component
Begin by selecting powder with the right particle size distribution and surface characteristics.|Start with selecting powder with the right surface area and particle size distribution. These factors control packing density, viscosity, and the final grain structure.
- Blend powder with a tailored binder mix and process into feedstock with target solid content (typically 55–65 volume percent).
- Use injection to create a green body; focus on gate placement to avoid weld lines and uneven packing.
- Debind to produce a fragile brown part, subsequently sinter to near-theoretical solidness.
Binding agents must flow for good filling, hold shape during processing, and exit cleanly in debinding to avoid bubbling or fractures.|Binders must flow to fill well, hold shape during handling, and exit cleanly during debinding to prevent cracks or blisters.
Material rheology — viscosity versus heat and stress — dictates filling, knit lines, and surface finish.|Feedstock rheology — viscosity against shear and temperature — governs fill behavior, surface finish, and knit lines. Molding machine design and screw/barrel design protect feedstock uniformity and stop degradation.|Machine geometry and screw/barrel design in CIM protect feedstock homogeneity and prevent degradation.
“Manage the process parameters: small variations in heat or force frequently lead to incomplete fills, voids, or bad surface quality.”
Compared with Metal Injection Molding, this route employs elevated firing temps and different gas environments to suit ceramic chemistry and density needs.|Compared to MIM, this route uses different atmospheres and higher sintering temperatures to match densification needs and ceramic chemistry.
Feedstock And Material Prep For High-Precision Parts
Selecting the correct ceramic powders and polymers lays the groundwork for predictable, high-precision parts.|The foundation for predictable, high-precision parts is set by selecting the right binders and powders.
Powder Selection And Important Specs
Alumina excels where durability and electrical insulation are required.|Alumina excels where electrical insulation and wear resistance matter. Zirconia adds fracture toughness for impact-prone parts.|Zirconia adds fracture toughness for parts prone to shock. Silicon carbide suits extreme heat and harsh environments.|Silicon carbide suits abrasive and high-temperature environments.
Control particle size, shape, and purity.|Control purity, shape, and particle size. Fine, spherical powder enhances density and surface finish.|Spherical, fine powder improves surface finish and packing. Non-spherical shapes can increase green strength but may degrade the final texture.|Irregular particles can boost green strength but may roughen the final surface.
Binder Systems And Ratios
Common binder types include paraffins and polyolefins like PE and polypropylene, along with specialty polymers for complex shapes.|Common binder families include polyolefins such as polypropylene and polyethylene, waxes, plus specialty polymers for difficult shapes. Binder percent influences melt flow and removal speed.|Debinding time and melt flow are affected by binder percent.
Rheology And Compounding
Compound with a consistent sequence: dry powder blending, gradual polymer addition, followed by regulated heat and shear.|Compound using a steady sequence: dry powder blending, gradual polymer addition, then controlled shear and temperature. Prevent binder degradation by limiting peak temperatures.|Limit peak temperatures to prevent binder degradation.
Test material with capillary rheometry or torque rheometers to confirm flow ranges for consistent filling and packing.|Test feedstock using torque rheometers or capillary rheometry to confirm viscosity windows for reliable packing and fill. Aim for solids loading that balances density and contraction — typically about 55–65 volume % for dense parts.|Aim for solids loading balancing shrinkage and density — typically around 55–65 vol% for high-density parts.
Drying, Handling, And Storage
Store materials in sealed containers and use FIFO.|Store powders in sealed containers and use FIFO. Manage moisture for moisture-sensitive additives and dry feedstock before molding to reduce voids and blemishes.|Dry pellets before molding and control humidity for hygroscopic additives to reduce blemishes and voids.
Follow safety gear and dust controls while working with dust and hot polymers.|When handling hot polymers and fine powder, follow dust controls and PPE. Upfront supplier collaboration on material selection accelerates validation and reduces rework.|Early supplier collaboration on binder and powder choices lowers iteration risk and speeds validation.
Part Design Guidelines For The Injection Molding Process
Engineering for this route starts with clear goals: achieve tolerances and limit finishing.|Designing for this route starts with clear goals: meet tolerances and limit post-sinter work. Early CAD decisions control contraction, strength, and handling of delicate green parts.|Early CAD decisions control shrinkage, strength, and handling of fragile green components.
Wall Thickness, Gates, And Knit Line Management
Maintain wall thickness uniform and employ gradual transitions to reduce sink and distortion.|Keep wall thickness uniform and use gradual transitions to reduce sink and warpage. Place gates so flow moves away from visual or high-stress areas to avoid weld lines in key areas.|Place gates so flow moves away from high-stress or cosmetic areas to avoid knit lines in critical zones.
Add a shrinkage factor and resize dimensions in the mold to hit target specs.|Add a shrink map and scale key features in the mold to hit final dimensions. Validate with mold flow analysis and a DFM review prior to mold making.|Validate with flow simulation and a DFM review before tooling.
Draft, Radii, And Features For Debinding/Sintering
Provide modest draft angles and ample radii to facilitate demold and reduce stress concentrations.|Provide modest draft angles and generous radii to ease demold and lower stress concentrations. Add vents, flow runners, or supports to speed debinding and hold fragile shapes.|Integrate vents, sacrificial channels, or setters to speed debinding and support fragile shapes.
Specify datums and measurement spots that match how parts are held during sintering and QC.|Define datums and inspection points that match how components are fixtured during sintering and QC. Leave slight machining allowance for tight tolerances while preventing too much material that increases expense.|Allow minimal finishing stock for critical fits while avoiding excess that raises cost.
| Design Focus |
Suggestion |
Advantage |
Validation |
| Section thickness |
Consistent, smooth changes |
Reduced warp; reliable shrink |
Simulation / prototype |
| Gate placement |
Away from visual/stress areas |
Fewer weld lines |
Flow sim |
| Debinding features |
Vents, channels, setters |
Intact brown parts; less cracking |
DFM review |

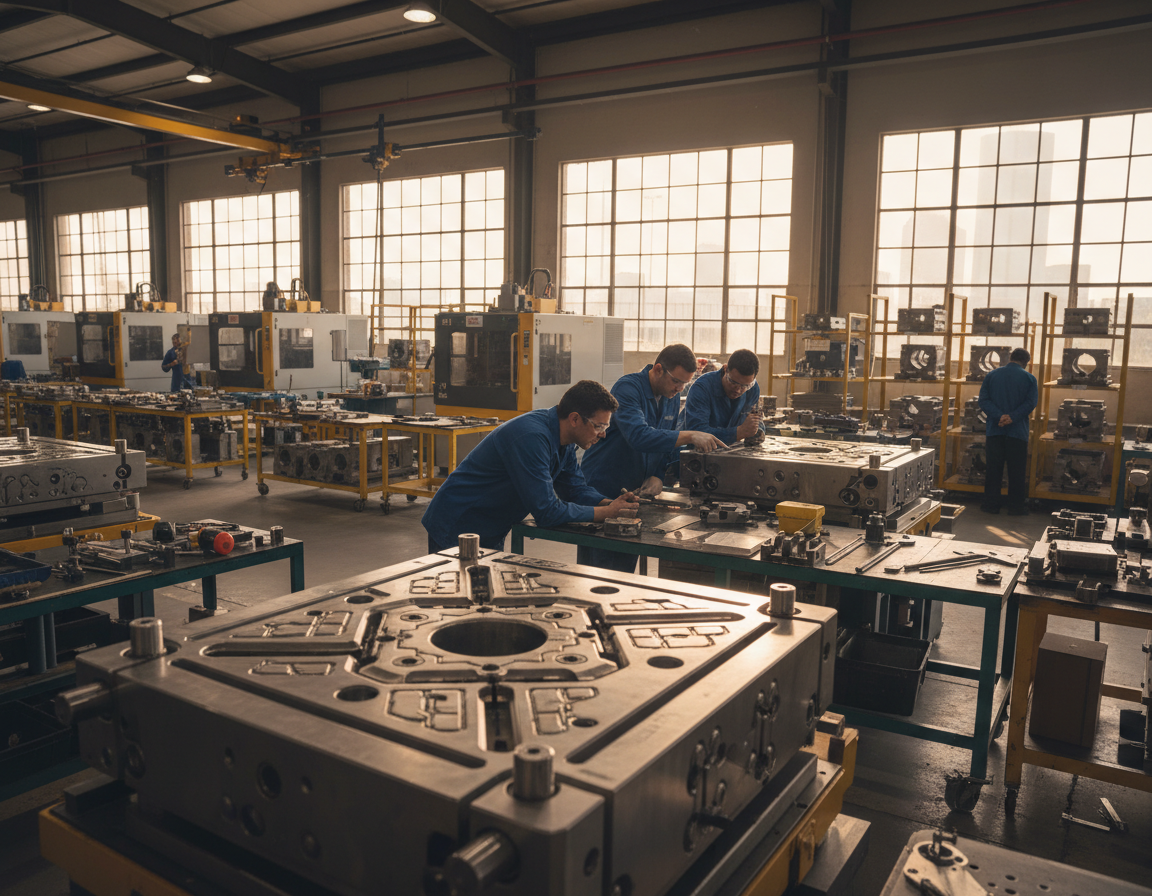

Tooling And Mold Considerations For Ceramic Injection
An engineered toolset reduces scrap and improves accuracy across high volume runs.|A well-designed toolset reduces scrap and improves dimensional control across long production runs. Start with material choices and coatings to handle abrasive feedstock and tight tolerances.|Start with material choices and surface engineering to handle abrasive feedstock and tight tolerances.
Mold materials should withstand wear and heat cycles.|Mold materials should resist abrasion and thermal cycling. Select hardened steels or superalloys and apply hard coatings for extended tool life.|Select high-performance steels or nickel-based alloys and add wear-resistant coatings for extended tool life.
Optimize surface finish to aid release whilst preserving detail.|Balance surface finish to aid release while preserving detail. Avoid roughness that catch material or lead to adhesion.|Avoid textures that trap binder or cause sticking. Engineer venting to exhaust air and volatiles and stop dieseling or incomplete fills.|Engineer venting to clear air and volatiles and prevent burn marks or short shots.
- Select gating styles (edge, tunnel, heated nozzle) and channels to promote balanced filling and reduce knit lines.
- Refine water lines to maintain cavity temperature and lower cycle variability.
- Employ strong ejection—stripper plates or air blast—to shield delicate molded parts during demold.
- Fit swappable components for quick iteration on inlets, vents, and key tolerances.
- Account for tolerance stack-ups by adjusting cavities for predicted shrink.
- Install internal pressure and temperature sensors to track the cycle and allow closed-loop control.
- Plan maintenance intervals and wear checks to maintain quality stable over production.
These measures tighten dimensional control and reduce downstream rework.|These measures tighten dimensional control and reduce downstream rework. Furthermore, they support volume manufacturing utilizing modern molding technology while protecting mold assets.|They also support scalable production using modern molding technology while protecting tool investment.
Running The Injection Molding Phase Step-By-Step
A consistent molding cycle depends on thermal profiles, pressure curves, and operator discipline.|A repeatable press cycle depends on temperature maps, pressure ramps, and operator discipline. Begin with a clear start-up checklist that protects feedstock and equipment from thermal shock.|Start with a clear start-up checklist that protects feedstock and machine from thermal shock.
Setting Up The Machine: Temp, Pressure, And Speed
Program barrel and mold temperature profiles to keep flow constant without degrading the binder.|Set barrel and mold temperature profiles to keep viscosity stable without degrading the binder. Adjust fill rate and pressure ramps to pack details while preventing splaying and flow lines.|Dial in injection speed and pressure ramps to fill complex features while avoiding jetting and flow lines.
Packing, Cooling, And Filling For Precision Tolerances
Employ multi-stage packing to densify parts and reduce internal voids.|Use multi-stage packing to densify green parts and reduce internal voids. Balance chill time for handling strength and cycle efficiency.|Balance cooling time for handling strength and cycle efficiency. Use purging and cleaning procedures to prevent cross-contamination.|Implement purging and material changeover steps to avoid cross-contamination.
Safe Demolding Of Green Parts
Apply slick coatings and measured release agents where needed.|Apply low-friction coatings and measured mold release where needed. Utilize gentle ejection and guarded fixtures for fragile areas.|Use controlled ejection and guarded fixtures for delicate features. Train operators to spot flaws early and stop the production if needed.|Train operators to spot defects early and stop the run if needed.
| Parameter |
Target |
Benefit |
| Temperature settings |
Consistent flow range |
Less short shots; good finish |
| Pressure & speed ramps |
Staged profiles |
Complete fill; reduced weld lines |
| Hold & Cool |
Multi-stage; balanced time |
Uniform density; dimensional stability |
Effective Debinding: Methods And Practices
Successful debinding is a vital stage that converts a delicate green part into a furnace-ready component.|Effective binder removal is a critical step that turns a fragile green part into a sinter-ready component.
Two main debinding methods are standard: solvent debinding and heat debinding.|Two main debinding methods are common: solvent debinding and thermal debinding. Chemical removal removes the soluble components initially.|Solvent debinding extracts the soluble binder fraction first. Heat removal subsequently removes the residual binder by controlled heating.|Thermal debinding then removes the remaining polymer by controlled pyrolysis.
Thermal Vs. Solvent Methods
Solvent processing is rapid for soluble phases and reduces internal pressure during the next stage.|Solvent debinding is fast for soluble phases and reduces internal pressure during the next stage. Thermal processing is more time-consuming but needed to eliminate hard-to-dissolve polymer.|Thermal debinding is slower but needed to remove hard-to-dissolve polymer. Choosing the right method relies on binder type and part shape.|Choosing the right method depends on binder chemistry and part geometry.
How To Avoid Debinding Defects
Fixture choice and positioning are crucial.|Fixture choice and part orientation matter. Support fragile areas and permit open channels for volatiles to prevent cracking and distortion.|Support fragile areas and allow free escape paths for volatiles to prevent cracking and distortion.
Employ gentle heating ramps, staged hold times, and controlled airflow to avoid pressure buildup that cause blistering.|Use gentle heating ramps, staged hold times, and controlled airflow to avoid pressure spikes that cause blistering. Thick sections and blind holes require longer cycles or local vents.|Thick sections and blind holes need longer cycles or local vents.
Select solvents with recycling units and proper ventilation.|Pick solvents with recovery systems and proper ventilation. Observe safety sheets and local environmental rules to protect workers and meet laws.|Follow MSDS guidance and local environmental rules to protect workers and comply with regulations.
- Run samples and test pieces to confirm complete debinding before sintering.
- Watch for odor, discoloration, or unexpected mass loss profiles—these indicate incomplete debinding.
- Troubleshoot skinning, layer separation, or sagging by reducing heat rates, improving venting, or adjusting supports.
Debinding success depends on injection and injection quality; voids or seams often become failure points in debinding.|Debinding success ties back to molding and injection quality; voids or knit lines often become failure points during removal. Log profiles and mass loss data to standardize production and protect final part quality.|Record debinding curves and mass loss data to standardize processing and protect final part quality.
Sintering For Performance And Final Density
Controlled sintering is the step that transforms a fragile brown shape into a solid, functional component.|Controlled sintering is the step that converts a fragile brown shape into a dense, service-ready part. The furnace cycle sets microstructure, porosity, and mechanical properties that determine long-term performance.
Atmospheres, Shrinkage Control, And Temp Profiles
Implement a three-step cycle: gentle heating to remove leftover binder, a steady rise to the densification range, and a measured cool-down to avoid thermal shock.|Use a three-stage profile: slow heat-up to remove residual binder, a controlled ramp into the densification range, and a measured cool-down to avoid thermal shock.
Match gas to material: air for oxides, argon/nitrogen or hydrogen for non-oxides and some engineered mixes.|Match atmosphere to material: air for alumina-type oxides, inert or reducing for carbides and some engineered mixes. The right gas preserves chemistry and color while limiting grain boundary reactions.
Track contraction with sacrificial coupons and incorporate those values into mold scaling.|Measure shrinkage with sacrificial coupons and incorporate those values into cavity compensation. Design setters and fixtures to restrain distortion and allow uniform gas flow.|Design setters and supports to restrain warpage and allow uniform gas flow.
Optimizing For Strength, Wear, And Corrosion
Sintering changes grain size and porosity, which drive bending strength and fracture toughness.|Sintering alters grain size and porosity, which drive flexural strength and fracture toughness. Aim for full density with low grain growth to achieve mechanical targets.|Aim for high density with minimal grain coarsening to meet mechanical targets.
Choose composition and sinter soak times to maximize corrosion resistance and hardness for wear resistance.|Select material chemistry and sinter soak times to optimize corrosion resistance and surface hardness for wear resistance. Consider post-sinter HIP if residual porosity impacts life or sealing.|Consider post-sinter HIP where residual porosity affects fatigue or sealing.
- Record profiles and use thermocouples or optical sensing to verify heat accuracy.
- Control part orientation and gaps to ensure uniform temperature and atmosphere exposure.
- Watch for flaws: sagging, large grains, and voids—slow ramps and better support frequently resolve these.
| Parameter |
Target |
Effect |
Production Tip |
| Ramp rate |
1–5 °C/min (debind) / 5–20 °C/min (fire) |
Reduces cracking; controls grain growth |
Match to binder and part mass |
| Dwell settings |
Material dependent; varied time |
Densification; pore removal |
Use coupons to set soak |
| Gas environment |
Air / N2 / H2 |
Preserves chemistry; prevents oxidation |
Check flow and purity |
| After-treatment |
HIP/Annealing |
Remove pores; increase strength |
Apply when parts need max performance |
“Repeatable firing cycles and validated furnaces directly raise yield and cut secondary work.”
Quality Control, Metrology, And Tolerances
A strong QC plan converts variability in shrink into reliable specs.|A robust metrology plan turns uncertainty in shrinkage into predictable tolerances. Start with clear checkpoints at all stages to detect deviations early.|Start with clear inspection gates at green, brown, and sintered states to catch deviations early.
Compensating For Shrinkage In The Mold
Use shrinkage correlation charts from pilot runs to adjust mold sizes.|Use shrinkage correlation charts from pilot runs to scale cavity dimensions. Validate with sacrificial coupons and refine the mold compensation map before full tooling runs.|Validate with sacrificial coupons and update the mold compensation map before full tooling runs.
Checks For Porosity, Microstructure, And Surface Quality
Check roughness and specific gravity using profilometers and Archimedes testing.|Inspect surface finish and density using profilometers and Archimedes testing. CT scans and microscopes reveal voids that impact mechanical properties.|Micro-CT and optical scans reveal internal pores that affect mechanical properties.
- Establish QC plans covering all phases with criteria.
- Apply tools: Coordinate Measuring Machines, vision systems, surface profilometers, CT for internal checks.
- Correlate grain size and pore distribution with strength and wear performance.
| Stage |
Tool |
Measurement |
Action |
| Molded parts |
Vision system |
Dimensional conformity |
Tweak mold |
| Brown parts |
X-ray |
Void distribution |
Modify debind cycle |
| Fired parts |
CMM / Surface check |
Tolerances / surface Ra |
Approve lot |
| Lot control |
SPC software |
Capability / Density |
Pass/Fail |
Deploy SPC and capability studies before PPAP.|Implement SPC and capability studies before PPAP. Keep traceability from batch-level raw materials through finished lots.|Maintain traceability from lot-level powders and binders through batches. Calibrate gauges, perform measurement analysis, and set reject procedures with corrective actions.|Calibrate gauges, run MSA, and define nonconformance flows with root-cause action plans.
“Reliable measurement and records complete the circle on manufacturing quality.”
US Industry Use Cases And Applications
US manufacturers favor feedstock-based production when components need to combine light weight and durability.|Domestic producers favor feedstock-based production when parts must combine low mass and high wear resistance. In aerospace, automotive, medical, and electronics, vendors leverage this technology to hit tight specs and harsh environments.|Across aerospace, automotive, medical, and electronics, suppliers use this route to meet tight specs and harsh environments.
High Strength-To-Weight Components In Aerospace
For aviation, manufacturers specify lightweight bearings, jets, and thermal barrier parts that require efficiency.|In aerospace, manufacturers specify lightweight wear components, nozzle inserts, and thermal barrier parts that demand high strength-to-weight performance.
These components improve fuel efficiency and survive thermal shock and vibration in engines and controls.|These components improve fuel efficiency and survive temperature cycling and vibration in engines and actuation systems.
Automotive: Thermal Stability And Durability
Car applications include impellers, sensor housings, and exhaust-related insulators that need heat resistance and long-term durability.|Automotive use cases include pump components, sensor housings, and exhaust-related insulators that need thermal stability and long-term durability.
Replacing steel parts with ceramic parts stops corrosion and prolongs service life in tough engine bays.|Swapping metal parts for engineered powdered parts reduces corrosion and extends service life in harsh under-hood environments.
Precision And Miniaturization In Medical And Electronics
Healthcare and electronics sectors benefit from micro-scale insulators, connectors, implants, and safe wear parts.|Medical and electronics markets benefit from micro-scale insulators, ferrules, implantable device components, and biocompatible wear parts.
These components require precision, dielectric performance, and validated biocompatibility or dielectric testing before launch.|These components require tight tolerances, dielectric performance, and validated biocompatibility or dielectric testing prior to production release.
- Capability advantage: excellent hardness and chemical resistance render these components ideal for severe duty.
- Certified manufacturing frequently adheres to aerospace standards, auto standards, or medical standards with records and traceability.
- DFA is key for assemblies that join these parts to steel or polymers.
| Phase |
Lead Time |
Comment |
| Mold to Sample |
1.5 – 3 months |
Depends on insert complexity |
| Pilot to SOP |
1 – 2 months |
Validation and qual testing |
| Overall |
2.5 – 5 months |
Domestic supply chains shorten logistics |
Qual steps involve bio-tests for medical parts and dielectric testing for electronics.|Validation steps include biocompatibility studies for implants and dielectric testing for electronics. Many success stories demonstrate this method substituting metal parts to cut weight and eliminate rust issues in the field.|Many success stories show this approach replacing metal designs to cut weight and remove corrosion failure modes in service.
Costs, Cycle Times, And When CIM Beats Machining
Knowing costs helps decide if formed-powder production or CNC is the better choice.|Understanding economics helps decide whether formed-powder production or machining is the smarter path. Begin by mapping the main cost drivers and the way cycle time impacts cash flow.|Start by mapping the main cost drivers and how cycle time affects cash flow.
Primary Cost Factors
Tooling and mold amortization frequently are the biggest upfront cost.|Tooling and mold amortization often dominate initial spend. High-performance steels or interchangeable inserts raise initial investment but reduce unit cost at scale.|High-performance steels or interchangeable inserts raise up-front cost but lower per-piece cost over volume.
Material/feedstock, molding time, sintering time, manpower, and yield losses contribute to final cost.|Material/feedstock, press time, furnace soak, labor, and yield losses all add to true landed cost. Post-processing, inspection, and packaging also matter.|Secondary finishing, inspection, and packaging also matter.
| Factor |
Effect |
How to reduce |
| Tooling / mold |
High CapEx; low OpEx |
Modular inserts; amortize over volume |
| Materials |
Recurring; affects density and scrap |
Bulk buy; optimize mix |
| Equipment time |
Sets throughput and cash flow |
Balance press cycle with sinter batch size |
| Scrap rate |
Profit killer |
Design for uniform walls and gate locations |
When CIM Is Better Than Machining
For complex geometry and mid-to-high volumes, per-part costs are lower than machining.|For complex geometry and mid-to-high volumes, per-part costs fall below machining. Cutting brittle blanks creates waste and long cycle times for inner features.|Machining brittle blanks creates much scrap and long cycle times for internal channels.
Machining still wins for prototypes, oversized pieces, or when specs need tight post-sinter finishing.|Machining still wins for very low volumes, oversized pieces, or when tolerances need tight post-sinter finishing.
“Design optimization and scheduling convert fixed costs into competitive per-part pricing.”
Quoting Rules Of Thumb
- Calculate ROI: mold cost ÷ expected units = tooling per-part.
- Sum material, press cost, sinter cost, work, inspection, and packaging to find unit cost.
- Add a scrap buffer (5–15%) and a finishing cost.
These steps frame TCO and show how design, process choices, and better molds yield the biggest advantages.|These steps frame total cost of ownership and show where design, process choices, and smarter tooling deliver the biggest advantages.
Troubleshooting Common CIM Defects
Finding the real cause of short shots or distortion requires a mix of metrics and logic.|Finding the real cause of short shots or warpage needs both data and structured problem-solving. Use a simple guide to distinguish issues that originate in injection, debinding, or firing.|Use a simple checklist to separate problems that start in molding, debinding, or sintering.
Typical Defects And Quick Diagnoses
Incomplete fills happen if fill speed or pressure is too low, vents are blocked, or material contains water.|Short shots and voids happen when injection speed or pressure is too low, vents are blocked, or feedstock carries moisture.
Warpage frequently comes from unequal packing, nonuniform cooling, or bad fixturing in sintering.|Warpage often traces to unequal packing, nonuniform cooling, or poor support during sintering.
Delamination and weak knit lines are fixed by new gates, hotter material, or flow balancing in the mold.|Delamination and weak knit lines respond to gate redesign, higher melt temps, or flow balancing across cavities.
- Debinding blistering/cracks: slow heating, thick walls, or poor solvent penetration.
- Check tool damage and surface damage when defects appear following long runs.
- Use QC to limit material changes and moisture.
“Use structured root-cause tools such as Ishikawa and the 5-Whys to isolate process errors.”
| Issue |
Likely Cause |
Fast Action |
| Short shot/void |
Low pressure/speed, poor venting |
Increase injection pressure; clear vents |
| Distortion |
Bad cooling/packing |
Balance fill; adjust cooling |
| Cracking |
Debind profile issues |
Slower heat; check solvent |
Run DOE to tune settings and verify solutions.|Run DOE to tune parameters and verify fixes. Monitor defect codes and charts to target actions.|Track defect codes and Pareto charts to focus improvements. Close the loop among molders, furnace techs, and QA to reduce fix time and improve yield in the process.|Close the loop between press operators, furnace techs, and QA to shorten time-to-correct and raise overall quality in the process.
Safety, Compliance, And Sustainable Processing
Safeguarding workers and the environment is just as critical as meeting specs in current powder-based production.|Protecting workers and the environment is as important as hitting tolerances in modern powder-based production.
Handling Powders And Binders Safely
Wear PPE: masks, chemical-resistant gloves, glasses, and protective clothing for dry powder and binder handling.|Use PPE: N95 or P100 respirators, chemical-resistant gloves, eye protection, and protective clothing for dry powder and hot binder work.
Install local exhaust ventilation and HEPA filtration to control airborne powder.|Install local exhaust ventilation and HEPA filtration to control fugitive dust. Cover hoppers and install grounding to mitigate sparks.|Enclose transfer points and use grounded transfer lines to reduce static risks.
“Educate personnel on cleanup, binder hazards, and safe storage—practice simplify inspections.”
Waste, Recycling, And Energy Considerations
Segregate waste streams: powder waste, used binder, solvent residues, and general refuse.|Segregate waste streams: loose powder, used binder, solvent residues, and general refuse. Mark bins and store streams apart for recovery.|Label containers and keep solvent and powder streams separate for recovery.
Adopt solvent recycling and controlled feedstock regrind if allowed.|Adopt closed-loop solvent recovery and controlled feedstock regrind where quality permits. Doing so reduces waste fees and preserves raw materials.|This reduces disposal costs and preserves raw materials.
Plan furnace loads to fill the kiln and reduce peak demand.|Schedule furnace loads to maximize fill and minimize peak demand. Upgrade lining, use high-efficiency motors and VFDs, and log power usage for ISO 14001-style efficiency.|Improve insulation, use high-efficiency motors and variable-speed drives, and log energy data for ISO 14001-style continuous improvement.
Comply with safety and EPA rules for pollutants, VOCs, and logs.|Follow OSHA and EPA rules for hazardous air pollutants, solvent emissions, and recordkeeping. Keep SOPs, logs, and material safety data sheets available for inspectors.|Keep documented procedures, training records, and material safety data sheets ready for audits.
Design parts to cut mass and cycle time—these simple choices lower energy use and provide distinct environmental advantages while keeping manufacturing reliable.|Design parts to cut mass and cycle time—these simple choices lower energy use and offer clear environmental advantages while keeping production reliable.
Taking Your Ceramic Injection Molding Project To Production
Convert design intent into reliable manufacturing by sequencing tests, mold trials, and pilot runs.|Turn design intent into reliable production by sequencing material trials, tool proofs, and pilot runs.
Checklist: pick feedstock, run a DFM review, run simulation, build a prototype mold, complete validation runs, then perform approval or equivalent.|Practical checklist: pick feedstock, run a DFM review, simulate flow, build a prototype mold, complete validation runs, then execute PPAP or equivalent.
Establish milestones from RFQ → prototype tool → studies → FAI → Start of Production.|Set milestones from RFQ → prototype tool → capability studies → first article inspection → SOP. Confirm deliverables and schedules with suppliers to secure early choices.|Agree deliverables and timelines with suppliers to de-risk early choices.
Record quality plans, SOPs, and KPIs before launch.|Document control plans, work instructions, and quality metrics before pilot production. Plan capacity for press tonnage, furnace volume, debinding, and staffing.|Plan capacity for press tonnage, furnace volume, debind throughput, and staffing.
Aim for quick wins in which precision and complexity create value.|Target early wins where precision and complex geometry add value. Maintain quality with preventive maintenance, gauge R&R, and audits.|Maintain quality with preventive maintenance, gauge R&R, and periodic requalification.
Ready to start? Ask for a review and a quote using your parts, volumes, and performance needs.|Ready to proceed? Request a feasibility review and a cost model based on your parts, volumes, and performance needs.
FAQ
itemprop=”name”>What is the process behind making precision ceramic parts with injection techniques?
The process begins with blending ceramic or powder with a polymer-based binder to form a homogenous feedstock.|The process starts by mixing fine oxide or carbide powder with a polymer-based binder to form a homogenous feedstock. The mixture is shot into a mold under pressure to form a green body.|That feedstock is shot into a mold under pressure to create a green part. Post-molding, the polymer is removed via solvent or thermal debinding, and the component is sintered to reach full density and strength.|After molding, the binder is removed through solvent or thermal debinding, and the part is sintered to reach final density and mechanical properties. Every step — compounding, injection, washing, and sintering — must be controlled to meet tight tolerances and quality goals.|Each stage — compounding, molding, debinding, and sintering — must be controlled to meet tight tolerances and material performance targets.
itemprop=”name”>CIM vs. traditional forming: What’s the difference?
Unlike dry pressing or slip casting, that shape items individually or need significant machining, CIM enables mass production of complex geometries with details and repeatability.|Unlike pressing or slip casting, which shape parts one at a time or require significant machining, injection enables high-volume production of complex geometries with fine features and consistent repeatability. Furthermore, it lowers grinding for many components, increasing material yield and lowering unit cost in volume.|It also reduces post-sintering machining for many components, improving material yield and lowering per-part cost at scale.
itemprop=”name”>Common materials for CIM parts?
Common powders are aluminum oxide, zirconium oxide, and SiC.|Common powders include alumina, zirconia, and silicon carbide. Carbides are used where extreme wear resistance is needed.|Tungsten carbide blends appear where extreme wear resistance matters. Material choice depends on required strength, thermal stability, corrosion resistance, and electrical properties.|Powder selection depends on required strength, thermal stability, corrosion resistance, and electrical properties. Correct powder surface chemistry and PSD also affect feedstock flow and final density.|Proper powder surface chemistry and particle size distribution also affect feedstock flow and final density.
itemprop=”name”>What role do binders play and how are they chosen?
Binders provide strength and flow during molding, then must be removable without damaging the part.|Binders provide cohesion and flow during molding, then must be removable without harming the part. Common mixes use waxes and plastics in set amounts to manage flow, handling strength, and debinding behavior.|Typical systems use waxes and polymers in controlled ratios to balance viscosity, green strength, and debinding behavior. Choice depends on part geometry, removal process, and safety rules.|Selection depends on part geometry, debinding method, and environmental or safety requirements.
itemprop=”name”>Design strategies for shrinkage and tolerances?
Designers compensate by scaling molds to counteract expected shrink in the furnace.|Designers compensate by scaling mold cavities to offset predictable linear shrinkage during sintering. Also, they manage wall thicknesses, fillets, and place gates to reduce welds and warping.|They also control wall thicknesses, add radii, and locate gates to minimize knit lines and deformation. Working closely with the molder helps setting achievable tolerances using material and process capability.|Close collaboration with the manufacturer helps set achievable tolerances based on material and process capability.
itemprop=”name”>What mold considerations affect part quality?
Mold material, surface finish, venting, and gating all influence fill, pack, and ejection.|Mold material, surface finish, venting, and gate and runner design all influence filling, packing, and demolding. Tough steels with smooth surfaces reduce flaws.|Hardened steels with polished cavities reduce surface defects. Proper venting prevents trapped gas and short shots, whereas good gates yield smooth flow and limit knit lines.|Proper venting prevents trapped gas and short shots, while optimized gates yield consistent feedstock flow and reduce weld lines.
itemprop=”name”>Tuning the molding process for accuracy?
Machine parameters — barrel and mold temperature, speeds, and holding pressure — are tuned to ensure complete cavity fill and density.|Machine parameters — barrel and mold temperature, injection speed, and holding pressure — are tuned to ensure complete cavity fill and consistent packing. Chill time and demolding timing are fixed to avoid distortion of green parts whilst maintaining cycle efficiency.|Cooling and demolding timing are set to avoid distortion of green parts while maintaining cycle efficiency. Monitoring process data assists to keep variation low.|Monitoring process data helps keep variation low.
itemprop=”name”>What are the main debinding methods and when is each used?
Chemical debinding extracts soluble binder fractions and is gentle for complex features.|Solvent debinding extracts soluble binder fractions and is gentle for complex features. Thermal debinding heats up to evaporate or pyrolyze the remainder and is frequently used after solvent steps.|Thermal debinding ramps temperature to evaporate or pyrolyze the remainder and is often used after solvent steps. The decision depends on binder type, part thickness, and risk of cracking or blistering.|The choice depends on binder chemistry, part thickness, and risk of cracking or blistering.
itemprop=”name”>Avoiding cracks and blisters during debinding?
Manufacturers regulate heating rates, ensure venting paths, and employ staged solvent/thermal sequences tailored to material.|They control heating rates, ensure venting paths, and use staged solvent/thermal sequences tailored to feedstock. Uniform binder removal and minimizing gas build-up during burnout lower stresses that create failures.|Uniform binder removal and minimizing internal pressure during decomposition reduce stresses that cause cracks or blisters.
itemprop=”name”>Sintering for strength, wear, and corrosion resistance?
Furnace cycles — temperature, soak, ramp rates, and atmosphere — are optimized for shrinkage whilst controlling coarsening.|Sintering profiles — temperature, hold time, ramp rates, and atmosphere — are optimized for densification while limiting grain growth. Specific gases or HIP may be used to achieve target density, toughness, and finishes such as wear and corrosion resistance.|Controlled atmospheres or isostatic post-sinter densification may be used to achieve target density, strength, and surface properties like wear and corrosion resistance.
itemprop=”name”>How is quality measured and guaranteed across production runs?
QC uses measurement adjusted for shrinkage, microstructure analysis, density checks, and mechanical testing.|Quality control uses dimensional inspection adjusted for shrinkage, microstructure analysis, porosity checks, and mechanical testing. Statistical process control monitors key parameters to keep repeatability, and FAI validates mold sizing and sintering outcomes.|Statistical process control monitors key parameters to maintain repeatability, and first-article inspection validates tooling compensation and sintering outcomes.
itemprop=”name”>Which industries in the United States most benefit from this manufacturing route?
Aviation, automotive, medtech, and electronics are key users.|Aerospace, automotive, medical devices, and electronics benefit most. Common applications include wear parts, strong parts needing tight geometries, and micro parts when machining is too expensive.|Typical uses include thermal or wear-resistant components, high-strength parts requiring tight geometries, and miniature parts where machining would be impractical or costly.
itemprop=”name”>When does this approach beat traditional machining on cost?
It becomes economical when quantities increase, shapes are complex, or part consolidation cuts assembly.|It becomes economical when volumes rise, geometries are complex, or part consolidation reduces assembly steps. Mold cost is spread over volume, and the elimination for cutting decreases scrap and cycle cost per component.|High tooling cost is amortized over many parts, and the reduced need for machining lowers material waste and cycle cost per component.
itemprop=”name”>Common defects in CIM and how to fix them?
Incomplete parts, voids, bending, and peeling are caused by material issues, poor mold venting, incorrect process settings, or bad processing.|Short shots, voids, warpage, and delamination can stem from feedstock problems, poor mold venting, incorrect process settings, or improper debinding/sintering. Troubleshooting maps defect location to stage, then checks factors like force, heat, or flow for fixing.|Root-cause analysis maps defect location to process step, then isolates variables like pressure, temperature, or feedstock rheology for correction.
itemprop=”name”>Safety and environment in CIM processing?
Employ local exhaust ventilation, dust controls, and appropriate PPE while handling fine powders.|Use local exhaust ventilation, dust controls, and appropriate PPE when handling fine powders. Manage chemicals according to OSHA and EPA guidelines.|Manage solvent and binder waste per OSHA and EPA guidelines. Regrinding and energy-efficient sintering reduce environmental footprint.|Recycling of scrap feedstock and energy-efficient sintering reduce environmental footprint.
itemprop=”name”>Moving from prototype to production in CIM?
Begin with material selection and a DFM review.|Start with material selection and a design review for manufacturability. Run pilot parts to validate feedstock, mold compensation, and thermal profiles.|Produce pilot parts to validate feedstock, mold compensation, and thermal profiles. Refine the process, and grow with qualified suppliers able to show measurements and process control.|Iterate tooling and process parameters, then scale with qualified suppliers who can demonstrate consistent metrology and process control.
Related: The Latest Innovations in Injection Molds in Houston
Custom Mold Services Dallas
